How to Manage Voltage Drop: The Definitive Editorial Guide

How to manage voltage drop the transmission of electrical energy from a source to a load is never a lossless transaction. In every conductive medium, from the massive copper busbars of an industrial plant to the fine-gauge wiring of a residential smart home, a portion of the electrical potential is sacrificed to the resistance of the conductor itself. This phenomenon, known as voltage drop, represents the literal friction of physics. While it may appear as a minor calculation on a blueprint, unmanaged voltage drop is a silent architect of system failure, leading to flickering luminaires, premature motor burnout, and the erratic behavior of sensitive digital processors.

Managing this drop is a core competency for anyone overseeing infrastructure, yet the discipline is frequently treated as a secondary concern or addressed through crude oversized “rules of thumb.” A truly sophisticated approach requires a forensic understanding of the variables at play: the circular mil area of the conductor, the ambient thermal environment, and the specific reactance of the load. As systems become more complex and decentralized—particularly with the rise of low-voltage DC microgrids and expansive exterior lighting estates—the margin for error has narrowed significantly.

The goal of this inquiry is not merely to provide a mathematical formula, but to establish a systemic framework for electrical integrity. We are entering an era where energy efficiency and equipment longevity are paramount; consequently, the ability to maintain a stable voltage profile is no longer just a code requirement—it is a strategic necessity. This article deconstructs the mechanics of electrical resistance and provides a comprehensive roadmap for ensuring that the potential delivered at the utility meter remains consistent at the furthest reaches of the branch circuit.

Understanding “how to manage voltage drop”

To master how to manage voltage drop, one must first move beyond the abstraction of “lost power” and view it as a dynamic relationship between three fundamental variables: current, resistance, and distance. In the American electrical context, voltage drop is the reduction in voltage as it moves through a circuit. While the National Electrical Code (NEC) offers “recommendations” (specifically a 5% maximum total drop from the service to the furthest outlet), high-performance engineering often targets much tighter tolerances to preserve the health of expensive hardware.

A common oversimplification in the field is the belief that simply “upsizing the wire” is a universal panacea. While increasing the gauge of the conductor reduces resistance, it introduces new systemic complexities, including increased material costs, larger conduit requirements, and potential mechanical difficulties at termination points. Furthermore, managing voltage is not a one-time calculation performed at installation; it is a lifecycle governance issue. As loads are added to a circuit or as environmental temperatures shift, the original voltage profile can degrade, leading to “brownout” conditions at the load.

Understanding this phenomenon from a multi-perspective angle also requires recognizing the difference between “Real Power” (Watts) and “Apparent Power” (VA) in AC systems. Voltage drop is not purely resistive; in larger industrial systems with motors and transformers, “Inductive Reactance” plays a significant role. This means that managing the drop involves more than just selecting copper over aluminum; it involves optimizing the power factor and the physical layout of the cables to minimize electromagnetic interference.

Historical and Systemic Evolution of Power Distribution

How to manage voltage drop the tension between distance and voltage stability has shaped the very history of modern civilization. The “War of Currents” in the late 19th century between Thomas Edison’s Direct Current (DC) and Nikola Tesla’s Alternating Current (AC) was essentially a battle over voltage drop. Edison’s DC systems suffered from massive drops over short distances, requiring power plants to be built every few blocks. Tesla’s AC system won primarily because it allowed for the use of transformers to “step up” voltage for long-distance transmission, where a higher voltage at a lower current drastically reduced the percentage of lost potential.

Throughout the 20th century, the focus was on massive, centralized AC grids. However, we are currently witnessing a “Digital Decentralization.” The rise of solar arrays, battery storage, and low-voltage LED ecosystems has brought DC back to the forefront of the architectural conversation. Because these systems often operate at 12V, 24V, or 48V, they are far more sensitive to resistance. A one-volt drop on a 120V circuit is negligible (0.8%); a one-volt drop on a 12V circuit is a system-crushing 8.3%. This shift has elevated the management of voltage from a niche electrical concern to a primary pillar of sustainable design.

Conceptual Frameworks and Mental Models How To Manage Voltage Drop

Professionals utilize specific mental models to internalize the complexities of electrical potential loss.

1. The “Hydraulic Analogy” (Refined)

Visualize electricity as water flowing through a pipe. Voltage is the pressure, and wire gauge is the pipe diameter. Voltage drop is the pressure loss caused by the friction of the pipe walls over distance. To maintain high pressure at the showerhead (the load), you can either increase the initial pump pressure (transformer tap) or increase the pipe diameter (wire gauge). This model helps non-technical stakeholders understand why a 500-foot run requires a “thicker” wire than a 50-foot run.

2. The “Total Cost of Resistance” Model

This framework posits that every millivolt dropped is heat generated. Over 20 years, the cost of that wasted energy (heat) often exceeds the cost of installing a larger wire at the outset. This model shifts the decision-making logic from “Minimum Compliance” to “Long-Term ROI.”

3. The “Load Sensitivity” Spectrum

Not all loads react to voltage drop equally. An incandescent bulb merely dims; a digital processor may glitch or reboot; an AC motor, however, will attempt to compensate for low voltage by drawing more current. This creates a “Thermal Feedback Loop” where the increased current causes even more voltage drop and heat, eventually melting the motor windings. This framework prioritizes mitigation based on the “Criticality” of the equipment.

Key Categories of Mitigation and Conductor Dynamics

The choice of conductor and configuration is the first line of defense in maintaining voltage stability.

Strategy	Primary Benefit	Technical Trade-off	Best Use Case
Increased Gauge (AWG)	Direct resistance reduction.	Higher material/labor cost.	Residential and commercial branch circuits.
Transformer Taps	Boosts source voltage.	Risk of over-voltage if load drops.	Long-distance exterior lighting.
Distributed Power	Shortens the “Run” distance.	Requires more sub-panels.	High-acreage estates; campuses.
Parallel Conductors	High capacity; easier to pull.	Requires precise length matching.	Industrial feeders; heavy machinery.
Active Regulation	Precise, constant output.	High equipment cost; failure points.	Data centers; medical labs.

Decision logic for the how to manage voltage drop challenge typically begins with the “Conductor Material.” While copper is the standard for branch circuits due to its superior conductivity, aluminum is frequently used for large feeders. However, because aluminum has higher resistance, the gauge must be increased by roughly two sizes to match copper’s performance, necessitating larger conduits.

Detailed Real-World Scenarios How To Manage Voltage Drop and Decision Logic

The Remote Guest House (Feeder Run)

An estate owner builds a guest house 400 feet from the main service.

• The Conflict: Standard #6 AWG wire would result in a 7% drop under peak load (HVAC + Kitchen).

• The Decision: Upsize to 1/0 Aluminum.

• The Result: The drop is reduced to 2.8%, ensuring the HVAC compressor doesn’t “chatter” or overheat during summer peaks.

The Low-Voltage Landscape Estate

A 24V LED system illuminates a perimeter wall 300 feet from the transformer.

• The Failure: Using 12-gauge “landscape wire.” The lights at the end of the run are visibly dimmer and shifted toward a warmer (orange) color.

• The Plan: Utilize a “Multi-Tap” transformer. By connecting the long run to the “15V” or “28V” tap (depending on the system rating), the designer “over-pressurizes” the line to compensate for the expected friction.

• The Logic: This allows the voltage at the final fixture to land exactly at the required 24V.

Planning, Cost, and Resource Dynamics

The economic profile of voltage management is a balance between “Capital Expenditure” (CapEx) and “Operational Expenditure” (OpEx).

Expense Tier	Action	Cost Impact	Operational Value
Preventative	Precision sizing (Upsizing wire).	+20-40% Material cost.	Zero waste; max equipment life.
Corrective	Installing Boost Transformers.	$1,500 – $5,000 per unit.	Fixes existing poor infrastructure.
Systemic	Adding Sub-panels.	$3,000 – $10,000.	Shortens runs; highly scalable.

The “Opportunity Cost” of ignoring voltage drop is “Equipment Attrition.” If a commercial refrigeration unit runs on 208V instead of its rated 230V, its lifespan is typically halved. The cost of replacing that unit five years early is far greater than the copper required to provide stable power.

Tools, Strategies, and Support Systems How To Manage Voltage Drop

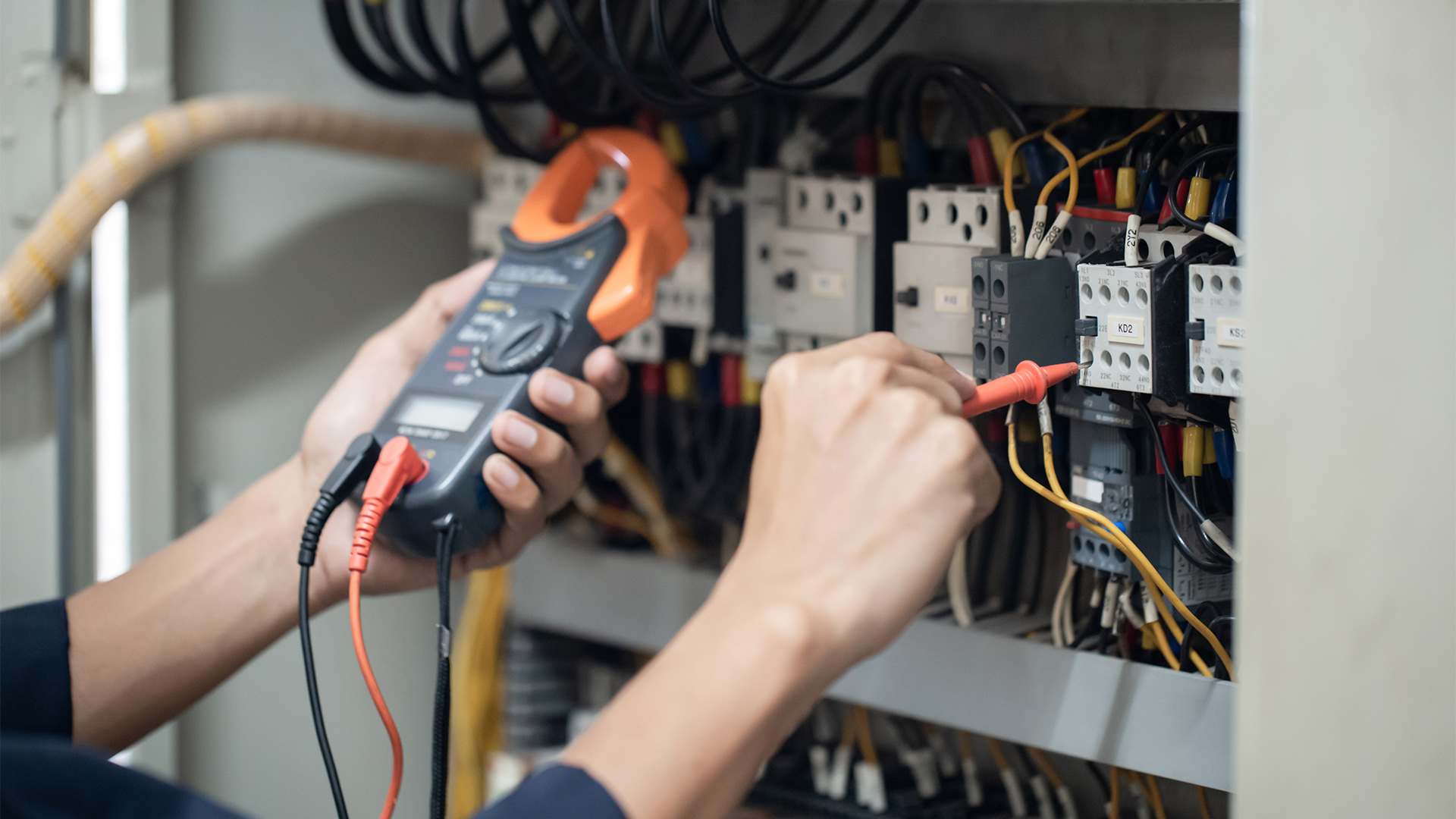

1. Digital Multimeters (True RMS): Essential for measuring “Loaded Voltage.” A circuit may show 120V with no load, but drop to 110V once the equipment is turned on.

2. Circuit Analyzers: Tools like the “SureTest” that simulate a 15A or 20A load to measure the exact percentage of drop instantly.

3. Voltage Drop Tables/Calculators: Software-based tools that account for temperature, conduit type (PVC vs. Steel), and power factor.

4. Power Quality Loggers: Long-term monitoring devices that track “Sags” and “Swells” over a week to identify intermittent voltage issues.

5. Buck-Boost Transformers: Small, specialized transformers used to permanently raise or lower voltage by 5-20%.

6. IR Thermography: Using thermal cameras to find “Hot Spots” in panels. A loose connection creates high resistance, leading to localized voltage drop and potential fire.

Risk Landscape and Systemic Failure Modes

Unmanaged voltage drop is rarely an immediate catastrophic event; it is a compounding decay. The primary risk is “Latent Thermal Damage.” When an electric motor receives low voltage, it draws higher amperage to meet the torque requirement ($P=IV$). This extra current generates heat that slowly degrades the lacquer insulation on the motor’s copper windings until they short-circuit.

A secondary risk is “Digital Instability.” In modern smart homes, many sensors and controllers operate on 5V or 3.3V DC. These are often powered by “Step-down” converters from a 24V bus. If the 24V bus drops below 20V due to resistance, the converters can no longer maintain a stable 5V, leading to erratic sensor data, dropped WiFi signals, and “phantom” reboots that are notoriously difficult to diagnose.

Governance, Maintenance, and Long-Term Adaptation How To Manage Voltage Drop

A professional electrical system requires a “Governance Protocol” to ensure that the original voltage calculations remain valid as the property evolves.

The Maintenance Checklist:

• Quarterly: Torque check on lugs. Loose connections are the #1 source of “Point Resistance.” Thermal expansion and contraction can loosen bolts over time.

• Bi-Annually: Voltage-under-load testing at the furthest outlet. This establishes a “Baseline” to see if the system is degrading.

• Annually: IR Scans of main breakers and sub-panels.

• Modification Review: Any time a new high-draw appliance (EV charger, sauna, workshop tool) is added, a new “Systemic Load Calc” must be performed to ensure the existing feeders can handle the current without excessive drop.

Measurement, Tracking, and Evaluation

• Leading Indicators: Resistance readings (Ohms) of unpowered lines. Any deviation from the AWG standard for that length indicates a poor splice or corrosion.

• Lagging Indicators: Frequent “Nuisance Tripping” of breakers or shortened bulb/appliance life.

• Qualitative Signal: Flickering of lights when a heavy load (like a vacuum or a refrigerator) kicks in. This is a definitive sign of “Branch Circuit Weakness.”

Common Misconceptions and Strategic Errors How To Manage Voltage Drop

• “The breaker will trip if the voltage is too low.” Standard breakers only protect against over-current, not under-voltage. Your motor can burn up at low voltage without the breaker ever noticing.

• “Voltage drop only happens in long wires.” A single loose or corroded wire nut can create as much voltage drop as 200 feet of wire.

• “Upsizing wire makes the circuit ‘too powerful’.” Wire gauge determines capacity, not “push.” The load only takes what it needs; a larger wire just makes it easier for it to do so.

• “DC doesn’t have voltage drop.” DC actually suffers more from voltage drop in low-voltage applications because you don’t have the high-voltage “cushion” of AC systems.

• “LEDs don’t care about voltage.” While some have “Wide Input” drivers, many cheap LEDs will flicker or experience “Color Shift” if the voltage isn’t stable.

Ethical and Practical Considerations

In the context of “Global Electrification,” managing voltage drop is an ethical issue of energy equity and sustainability. Wasted energy as heat is not just a financial loss; it is an environmental one. In off-grid or solar-powered systems, every percentage point of voltage drop is a percentage point of sunlight that was captured but never utilized. By prioritizing the “Infrastructure of Efficiency,” we reduce the total demand on the grid and extend the lifecycle of all connected technology.

Conclusion

The stability of an electrical system is a direct reflection of the designer’s respect for the laws of thermodynamics. To master how to manage voltage drop is to move from being a reactive fixer to a proactive steward of energy. It is an understanding that the wire is not just a path, but a component with its own personality and limits. By utilizing high-fidelity measurements, prioritizing noble materials, and maintaining a rigorous governance cycle, you ensure that the power generated is the power delivered. In the final analysis, the “best” electrical system is the one that remains silent and invisible—providing perfect potential to every device, every time, regardless of the distance.
